The pool is approximately 15,000 gallons.

This is a saltwater pool.  Saltwater pools use dissolved salt (2,700-3,400 ppm) as a store for the chlorination system. The chlorinator uses electrolysis to break down the salt (NaCl). The resulting chemical reaction eventually produces hypochlorous acid(HOCl), and sodium hypochlorite (NaClO), which are the sanitizing agents already commonly used in swimming pools. As such, a saltwater pool is not actually chlorine-free; it simply utilizes a chlorine generator instead of direct addition of chlorine. The important distinction is that saltwater pools lack chloramines, referred to as Combined Chlorine. Chloramines are the irritants which give traditional pools the stigma of burning eyes and caustic smell. The electrolytic process burns off chloramines in the same manner as traditional shock (oxidizer).

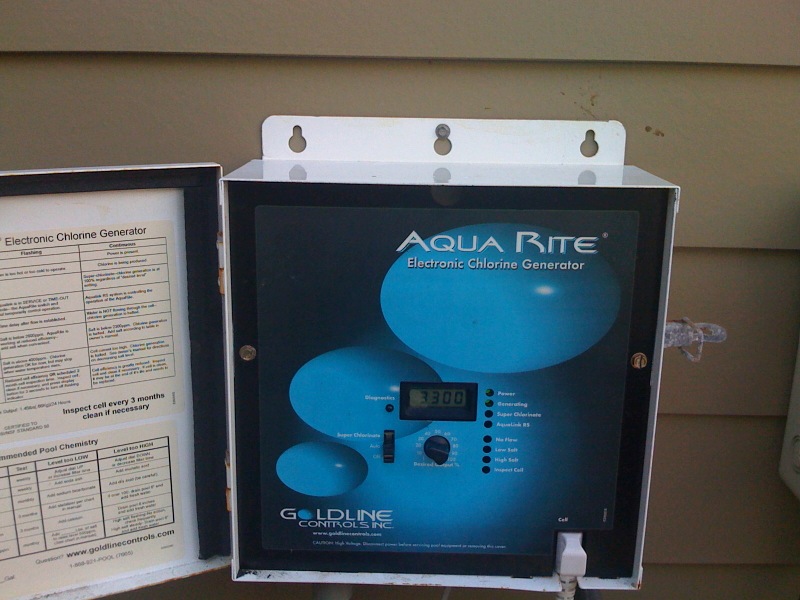

The Chlorine Generator is located by the side of the pool house.

Instruction Manual

The Main Circuit Board replaced in July 2009

Serial number of the main unit is 5A027-000984

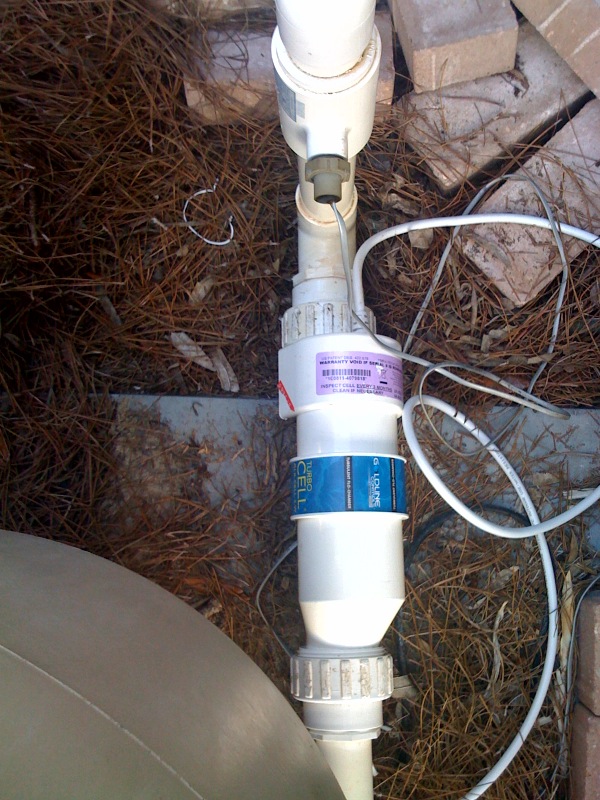

The control panel communicates with the Turbo Cell which generates the chlorine.

The turbo cell was replaced in July 2009.

We had minor difficulties, when you program it, make sure
that it is entered in as a T3, as opposed to a T15 cell, and turn the
power at the breaker box on and off once to reset.

The wire going into the PVC Tee is the flow switch.
We have a spare flow switch in the pool house.

Turbo Cell Maintenance

Turbo Cell Maintenance
